B32673Z5105K000 | TDK (EPCOS)
MKP film capacitor, 1 µF, ±10 %, 520 V (DC), PP, 22.5 mm, B32673Z5105K000
Order No.: 37D1854
EAN: 4099879815620
MPN:
B32673Z5105K000
B32673Z5105K
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor (MKP) for AC applications, type TDK/Epcos B32672../B32673.
For reactive power compensation, self-sealing, high pulse strength
Rated voltage 520 VDC/277 VAC, 22.5 mm grid, type B32673.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 22.5 mm | |
| Rated voltage (DC) | 520 V | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 277 V | |
| Tolerance | ±10 % | |

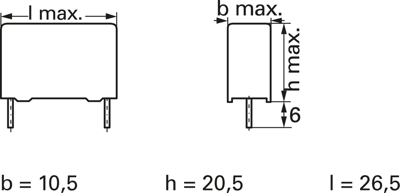

| Length | 26.5 mm | |
| Capacity | 1 µF | |
| Dielectric material | PP | |
| Height | 16.5 mm | |
| Width | 10.5 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 540 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
