B32673P6155K003 | TDK (EPCOS)

Name: MKP film capacitor, 1.5 µF, ±10 %, 630 V (DC), PP, 22.5 mm, B32673P6155K003
Brand: TDK (EPCOS)
SKU: 76D9955
Availability: InStock

MKP film capacitor, 1.5 µF, ±10 %, 630 V (DC), PP, 22.5 mm, B32673P6155K003

Order No.: 76D9955

EAN: 4099879864161

MPN:

B32673P6155K003

B32673P6155K3

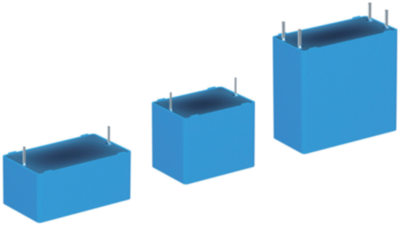

Image may differ

Key Specification:

Capacity 1.5 µF

Rated voltage (DC) 630 V

Rated voltage (AC) 200 V

Tolerance ±10 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.8925 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

1,927.80 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32673P6155K003, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

High frequency capability
Very small dimensions
Halogen-free
RoHS-compatible

Applications

PFC (Power Factor Correction)
Not suitable for across the line

Technical specifications

Filter	Property	Value
	Dielectric material	PP
	Rated voltage (DC)	630 V
	min. operating temperature	-55 °C
	Rated voltage (AC)	200 V
	max. operating temperature	125 °C
	Grid	22.5 mm
	Number of pins	2
	Height	18.5 mm
	Tolerance	±10 %
	Width	10.5 mm
	Length	26.5 mm
	Design	radial
	Capacity	1.5 µF
