B32672Z5473J000 | TDK (EPCOS)
MKP film capacitor, 47 nF, ±5 %, 520 V (DC), PP, 15 mm, B32672Z5473J000
Order No.: 37D1838
EAN: 4099879815590
MPN:
B32672Z5473J000
B32672Z5473J
Unit Price (€ / pc.)
0.2321 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor (MKP) for AC applications, type TDK/Epcos B32672../B32673.
For reactive power compensation, self-sealing, high pulse strength
Rated voltage 520 VDC/277 VAC, 15 mm grid, type B32672.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 15 mm | |
| Rated voltage (DC) | 520 V | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 277 V | |
| Tolerance | ±5 % | |

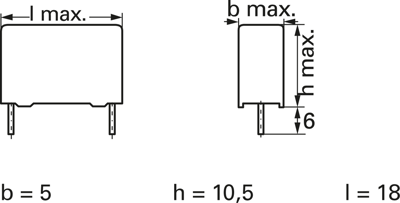

| Length | 18 mm | |
| Capacity | 47 nF | |
| Dielectric material | PP | |
| Height | 10.5 mm | |
| Width | 5 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
