B32672L1333J000 | TDK (EPCOS)
MKP film capacitor, 33 nF, ±5 %, 1.6 kV (DC), PP, 15 mm, B32672L1333J000
Order No.: 37D254
EAN: 4099879815866
MPN:
B32672L1333J000
B32672L1333J
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor (MKP) for AC applications, type TDK/Epcos B32652/653/654/671/672.
Self-sealing, face contacts, high pulse strength
Rated voltage 1600 VDC/600 VAC.

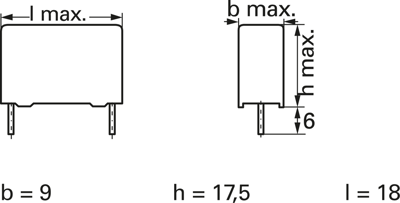

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9 mm | |
| Number of pins | 2 | |
| Tolerance | ±5 % | |
| Capacity | 33 nF | |
| Rated voltage (DC) | 1.6 kV | |
| Grid | 15 mm | |
| Rated voltage (AC) | 600 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Height | 17.5 mm | |
| Length | 18 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
