B32671L6563J000 | TDK (EPCOS)
MKP film capacitor, 56 nF, ±5 %, 630 V (DC), PP, 10 mm, B32671L6563J000
Order No.: 37D253
EAN: 4099879815859
MPN:
B32671L6563J000
B32671L6563J
Unit Price (€ / pc.)
0.3011 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor (MKP) for AC applications, type TDK/Epcos B32652/653/654/671/672.
Self-sealing, face contacts, high pulse strength
Rated voltage 630 VDC/250 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|

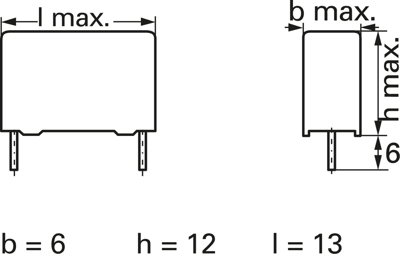

| Width | 6 mm | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 | |
| Length | 13 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Height | 12 mm | |
| Capacity | 56 nF | |
| Tolerance | ±5 % | |
| Grid | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
