B32671L4473J000 | TDK (EPCOS)
MKP film capacitor, 47 nF, ±5 %, 400 V (DC), PP, 10 mm, B32671L4473J000
Order No.: 37D208
EAN: 4099879815682
MPN:
B32671L4473J000
B32671L4473J
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 18 Weeks
Film capacitor (MKP) for AC applications, type TDK/Epcos B32652/653/654/671/672.
Self-sealing, face contacts, high pulse strength
Rated voltage 400 VDC/200 VAC.
Technical specifications
| Rated voltage (DC) | 400 V | |
| Dielectric material | PP | |
| Capacity | 47 nF | |
| Grid | 10 mm | |

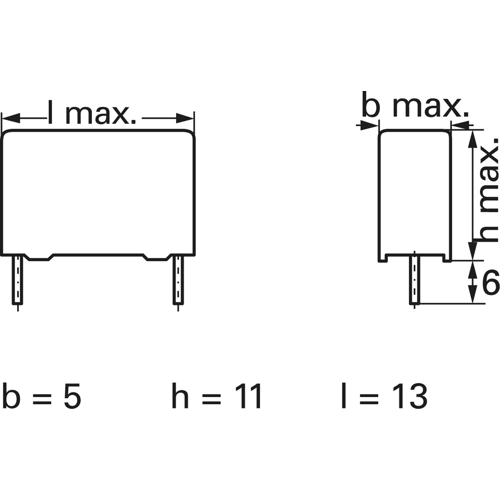

| Width | 5 mm | |
| Height | 11 mm | |
| Length | 13 mm | |
| Rated voltage (AC) | 200 V | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
