B32671L0123J000 | TDK (EPCOS)
MKP film capacitor, 12 nF, ±5 %, 1 kV (DC), PP, 10 mm, B32671L0123J000
Order No.: 37D216
EAN: 4099879815729
MPN:
B32671L0123J000
B32671L123J
Unit Price (€ / pc.)
0.2725 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor (MKP) for AC applications, type TDK/Epcos B32652/653/654/671/672.
Self-sealing, face contacts, high pulse strength
Rated voltage 1000 VDC/500 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Rated voltage (DC) | 1 kV | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 500 V | |
| Tolerance | ±5 % | |

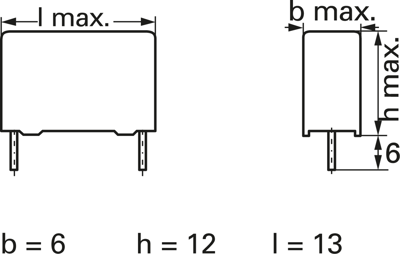

| Length | 13 mm | |
| Capacity | 12 nF | |
| Dielectric material | PP | |
| Height | 12 mm | |
| Width | 6 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
