B32656S7145K561 | TDK (EPCOS)

Name: MKP film capacitor, 1.4 µF, ±10 %, 1.25 kV (DC), PP, 28 mm, B32656S7145K561
Brand: TDK (EPCOS)
SKU: 45D4311
Availability: InStock

MKP film capacitor, 1.4 µF, ±10 %, 1.25 kV (DC), PP, 28 mm, B32656S7145K561

Order No.: 45D4311

EAN: 4099879842190

MPN:

B32656S7145K561

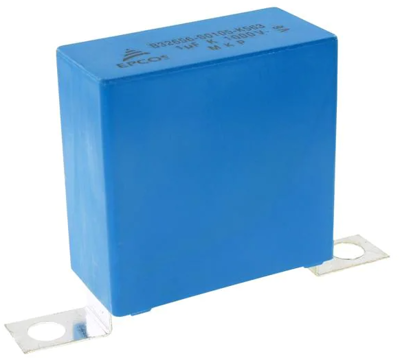

Image may differ

Key Specification:

Capacity 1.4 µF

Rated voltage (DC) 1.25 kV

Rated voltage (AC) 500 V

Tolerance ±10 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.8048 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

566.63 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32656S7145K561, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

High pulse strength and high contact reliability
Very low inductance
RoHS-compatible

Applications

Snubbering
IGBT

Technical specifications

Filter	Property	Value
	Rated voltage (AC)	500 V
	Rated voltage (DC)	1.25 kV
	Number of pins	2
	Design	radial
	Dielectric material	PP
	max. operating temperature	110 °C
	min. operating temperature	-55 °C
	Capacity	1.4 µF
	Tolerance	±10 %
	Grid	28 mm
