B32656S2473J563 | TDK (EPCOS)
MKP film capacitor, 47 nF, ±5 %, 2 kV (DC), PP, 57 mm, B32656S2473J563
Order No.: 45D4292
EAN: 4099879842008
MPN:
B32656S2473J563
Unit Price (€ / pc.)
10.6029 € *
Standard delivery time from the manufacturer is: 22 Weeks

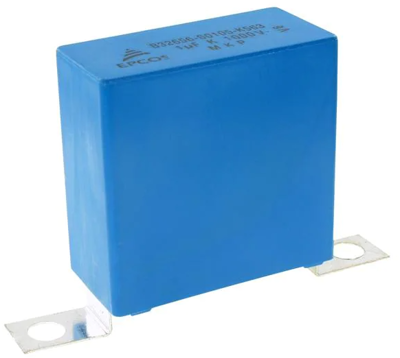

Film capacitor, B32656S2473J563, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength and high contact reliability
- Very low inductance
- RoHS-compatible
Applications
- Snubbering
- IGBT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 2 kV | |
| Rated voltage (AC) | 800 V | |
| Tolerance | ±5 % | |
| Design | radial | |
| Width | 12 mm | |
| Height | 22.5 mm | |
| Dielectric material | PP | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Length | 42 mm | |
| Capacity | 47 nF | |
| Grid | 57 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Country of origin | BR |
| Original Packaging | Bulk with 48 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
