B32656S1105K577 | TDK (EPCOS)
MKP film capacitor, 1 µF, ±10 %, 1.6 kV (DC), PP, 37 mm, B32656S1105K577
Order No.: 45D4269
EAN: 4099879841803
MPN:
B32656S1105K577
Unit Price (€ / pc.)
17.1955 € *
Standard delivery time from the manufacturer is: 22 Weeks

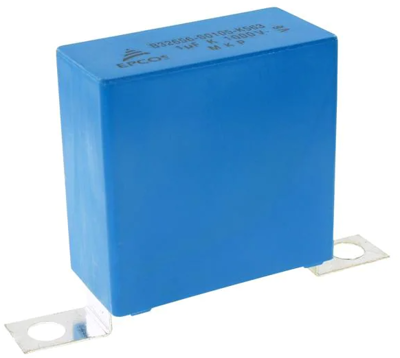

Film capacitor, B32656S1105K577, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength and high contact reliability
- Very low inductance
- RoHS-compatible
Applications
- Snubbering
- IGBT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 1.6 kV | |
| Rated voltage (AC) | 750 V | |
| Tolerance | ±10 % | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Number of pins | 2 | |
| Capacity | 1 µF | |
| Grid | 37 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Country of origin | BR |
| Original Packaging | Bulk with 21 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
