B32654A6684J000 | TDK (EPCOS)
MKP film capacitor, 680 nF, ±5 %, 630 V (DC), PP, 27.5 mm, B32654A6684J000
Unit Price (€ / pc.)
   1.8802 €  *
   Available: 1,280 pcs.
 Total Price:
  1.88 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 1.8802 €
 10 pcs.
 1.5708 €
 100 pcs.
 1.3447 €
 250 pcs.
 1.2138 €
 1000 pcs.
 1.1186 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Film capacitor, B32654A6684J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| Height | 21 mm | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 | |
| Capacity | 680 nF | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Dielectric material | PP | |
| Tolerance | ±5 % | |

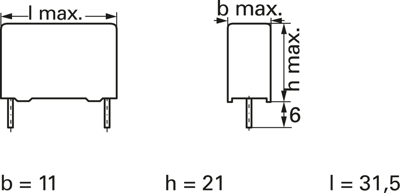

| Length | 31.5 mm | |
| Width | 11 mm | |
| max. operating temperature | 100 °C | |
| Grid | 27.5 mm |
 Download
  Logistics

 | Property | Value |
|---|---|
| Original Packaging | Bulk with 320 pieces |
| Customs tariff number | 85321000 |
| Country of origin | IN |
 Compliance

 | Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
