B32654A6155J000 | TDK (EPCOS)
MKP film capacitor, 1.5 µF, ±5 %, 630 V (DC), PP, 27.5 mm, B32654A6155J000
Unit Price (€ / pc.)
   3.4153 €  *
   Available: 4,196 pcs.
 Total Price:
  3.42 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 3.4153 €
 10 pcs.
 2.0230 €
 100 pcs.
 1.7969 €
 500 pcs.
 1.7612 €
 1000 pcs.
 1.6898 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Film capacitor, B32654A6155J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Rated voltage (AC) | 250 V | |
| Capacity | 1.5 µF | |
| max. operating temperature | 100 °C | |

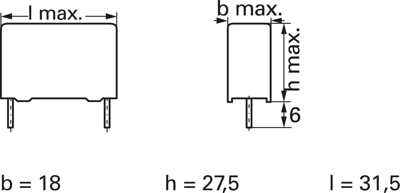

| Length | 31.5 mm | |
| min. operating temperature | -55 °C | |
| Height | 27.5 mm | |
| Width | 18 mm | |
| Grid | 27.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 630 V | |
| Tolerance | ±5 % |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 200 pieces |
| Country of origin | IN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
