B32654A2223J000 | TDK (EPCOS)
MKP film capacitor, 22 nF, ±5 %, 2 kV (DC), PP, 27.5 mm, B32654A2223J000
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: 12 Weeks
Film capacitor, B32654A2223J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT
Technical specifications
| Filter | Property | Value |
|---|---|---|

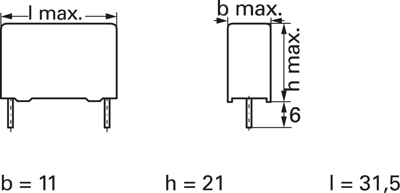

| Width | 11 mm | |
| Number of pins | 2 | |
| Tolerance | ±5 % | |
| Capacity | 22 nF | |
| Rated voltage (DC) | 2 kV | |
| Grid | 27.5 mm | |
| Rated voltage (AC) | 700 V | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Height | 21 mm | |
| Length | 31.5 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 320 pieces |
| Country of origin | ES |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
