B32654A0684J000 | TDK (EPCOS)

MKP film capacitor, 680 nF, ±5 %, 1 kV (DC), PP, 27.5 mm, B32654A0684J000

Order No.: 37D4464
EAN: 4099879816115
MPN:
B32654A0684J000
B32654A684J
Series: MKP, B3265..
B32654A0684J000 TDK (EPCOS) Film Capacitors Image 1
B32654A0684J000 TDK (EPCOS) Film Capacitors Image 2
B32654A0684J000 TDK (EPCOS) Film Capacitors Image 3
Image may differ
Unit Price (€ / pc.)
4.0341 € *
Available: 641 pcs.
Total Price:
4.03 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0341 €
10 pcs.
2.8798 €
100 pcs.
2.4633 €
500 pcs.
2.1420 €
1000 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

Film capacitor, B32654A0684J000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • High pulse strength
  • High contact reliability
  • Very low inductance
  • RoHS-compatible
  • Halogen-free

Applications

  • Electronic ballasts
  • Switch-mode power supplies
  • Snubbering
  • IGBT
Technical specifications
Rated voltage (DC) 1 kV
Dielectric material PP
Capacity 680 nF

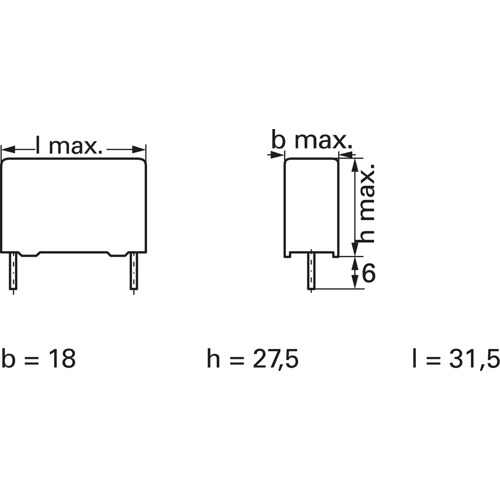

Grid 27.5 mm
Width 18 mm
Height 27.5 mm
Length 31.5 mm
Rated voltage (AC) 250 V
Design radial
min. operating temperature -55 °C
Tolerance ±5 %
max. operating temperature 100 °C
Number of pins 2
Logistics
Country of origin IN
Customs tariff number 85321000
Original Packaging Bulk with 200 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
