B32653A6224J000 | TDK (EPCOS)

MKP film capacitor, 220 nF, ±5 %, 630 V (DC), PP, 22.5 mm, B32653A6224J000

Order No.: 37D410
EAN: 4099879815996
MPN:
B32653A6224J000
B32653A6224J
Series: MKP, B3265..
B32653A6224J000 TDK (EPCOS) Film Capacitors Image 1
B32653A6224J000 TDK (EPCOS) Film Capacitors Image 2
B32653A6224J000 TDK (EPCOS) Film Capacitors Image 3
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
1,310.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
2040 pcs.
0.6426 €

Film capacitor, B32653A6224J000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • High pulse strength
  • High contact reliability
  • Very low inductance
  • RoHS-compatible
  • Halogen-free

Applications

  • Electronic ballasts
  • Switch-mode power supplies
  • Snubbering
  • IGBT
Technical specifications
Filter Property Value

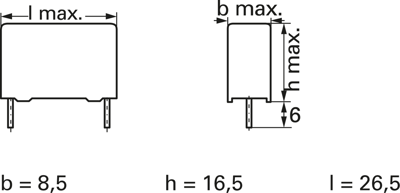

Width 8.5 mm
Rated voltage (AC) 250 V
Rated voltage (DC) 630 V
Number of pins 2
Length 26.5 mm
Design radial
Dielectric material PP
max. operating temperature 100 °C
min. operating temperature -55 °C
Height 16.5 mm
Capacity 220 nF
Tolerance ±5 %
Grid 22.5 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85321000
Original Packaging Bulk with 510 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
