B32653A2682J000 | TDK (EPCOS)
MKP film capacitor, 6.8 nF, ±5 %, 2 kV (DC), PP, 22.5 mm, B32653A2682J000
Order No.: 37D274
EAN: 4099879815941
MPN:
B32653A2682J000
B32653A2682J
Unit Price (€ / pc.)
0.6545 € *
Standard delivery time from the manufacturer is: 12 Weeks
Film capacitor, B32653A2682J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT

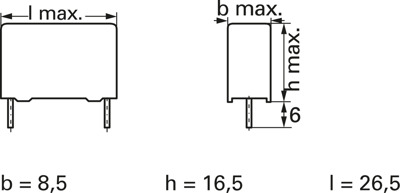

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 8.5 mm | |
| Rated voltage (AC) | 700 V | |
| Rated voltage (DC) | 2 kV | |
| Number of pins | 2 | |
| Length | 26.5 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Height | 16.5 mm | |
| Capacity | 6.8 nF | |
| Tolerance | ±5 % | |
| Grid | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 510 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
