B32653A1223J000 | TDK (EPCOS)

MKP film capacitor, 22 nF, ±5 %, 1.6 kV (DC), PP, 22.5 mm, B32653A1223J000

Order No.: 37D562
EAN: 4099879816146
MPN:
B32653A1223J000
B32653A1223J
Series: MKP, B3265..
B32653A1223J000 TDK (EPCOS) Film Capacitors Image 1
B32653A1223J000 TDK (EPCOS) Film Capacitors Image 2
B32653A1223J000 TDK (EPCOS) Film Capacitors Image 3
Image may differ
Unit Price (€ / pc.)
0.7497 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
1,529.39 € *
Price list
Quantity
Price per unit*
2040 pcs.
0.7497 €
10200 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

Film capacitor, B32653A1223J000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • High pulse strength
  • High contact reliability
  • Very low inductance
  • RoHS-compatible
  • Halogen-free

Applications

  • Electronic ballasts
  • Switch-mode power supplies
  • Snubbering
  • IGBT
Technical specifications
Filter Property Value
Rated voltage (DC) 1.6 kV
Dielectric material PP
Capacity 22 nF

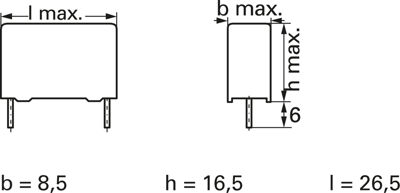

Grid 22.5 mm
Width 8.5 mm
Height 16.5 mm
Length 26.5 mm
Rated voltage (AC) 500 V
Design radial
min. operating temperature -55 °C
Tolerance ±5 %
max. operating temperature 100 °C
Number of pins 2
Logistics
Property Value
Country of origin IN
Customs tariff number 85321000
Original Packaging Bulk with 510 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
