B32652A6473J000 | TDK (EPCOS)
MKP film capacitor, 47 nF, ±5 %, 630 V (DC), PP, 15 mm, B32652A6473J000
Unit Price (€ / pc.)
0.8211 € *
Available: 5,153 pcs.
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.5117 €
50 pcs.
0.4165 €
250 pcs.
0.3570 €
1000 pcs.
0.3046 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, B32652A6473J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 250 V | |
| Height | 10.5 mm | |
| Rated voltage (DC) | 630 V | |
| Number of pins | 2 | |
| Capacity | 47 nF | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Dielectric material | PP | |
| Tolerance | ±5 % | |

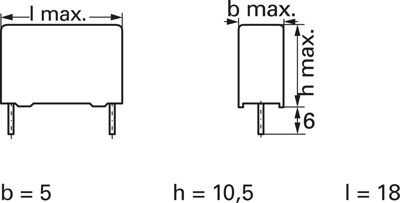

| Length | 18 mm | |
| Width | 5 mm | |
| max. operating temperature | 110 °C | |
| Grid | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85321000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
