B32652A0223J000 | TDK (EPCOS)
MKP film capacitor, 22 nF, ±5 %, 1 kV (DC), PP, 15 mm, B32652A0223J000
Unit Price (€ / pc.)
0.7568 € *
Available: 2,784 pcs.
Total Price:
0.76 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7568 €
10 pcs.
0.3701 €
100 pcs.
0.3368 €
500 pcs.
0.3344 €
1000 pcs.
0.3130 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, B32652A0223J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High pulse strength
- High contact reliability
- Very low inductance
- RoHS-compatible
- Halogen-free
Applications
- Electronic ballasts
- Switch-mode power supplies
- Snubbering
- IGBT

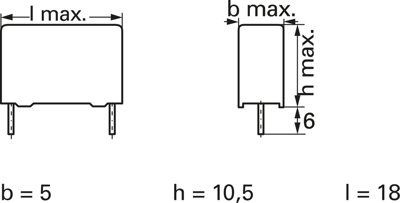

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 15 mm | |
| Height | 10.5 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 110 °C | |
| Rated voltage (AC) | 250 V | |
| Rated voltage (DC) | 1 kV | |
| Tolerance | ±5 % | |
| Width | 5 mm | |
| Capacity | 22 nF | |
| Design | radial | |
| Length | 18 mm | |
| Number of pins | 2 | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Country of origin | ES |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
