B32643B8223K000 | TDK (EPCOS)

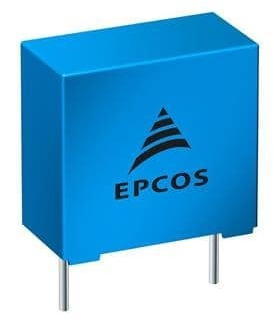

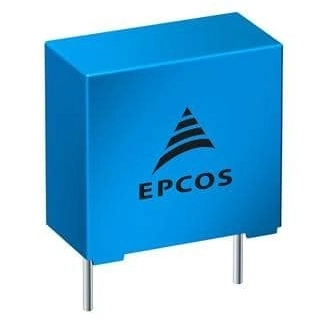

MKP film capacitor, 22 nF, ±10 %, 2 kV (DC), PP, 22.5 mm, B32643B8223K000
Order No.: 17D0277
EAN: 4099879813107
MPN:
B32643B8223K000
B32643B8223K
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: 10 Weeks
Film capacitor, B32643B8223K000, EPCOS
Double sided metallized polypropylene film capacitor MMKP
Features
- Very compact design
- High pulse strength
- High current withstand capability
- Halogen free
Applications
- Electronic ballasts (resonant circuits)
- LLC typology in resonant circuits
- High frequency applications with high current stress
- Switched-mode power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 22.5 mm | |
| Rated voltage (DC) | 2 kV | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 500 V | |
| Tolerance | ±10 % | |
| Length | 26.5 mm | |
| Capacity | 22 nF | |
| Dielectric material | PP | |
| Height | 15 mm | |
| Width | 6 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 720 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
