B32643B1223J189 | TDK (EPCOS)

MKP film capacitor, 22 nF, ±5 %, 1.6 kV (DC), PP, 22.5 mm, B32643B1223J189

Order No.: 53D4957
EAN: 4099879859877
MPN:
B32643B1223J189
TDK (EPCOS)

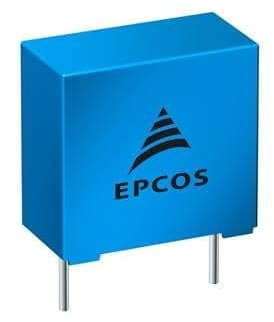

B32643B1223J189 TDK (EPCOS) Film Capacitors
Image may differ
Print
Key Specification:
Capacity 22 nF
Rated voltage (DC) 1.6 kV
Rated voltage (AC) 500 V
Tolerance ±5 %
Dielectric material PP
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,299.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
2800 pcs.
0.4641 €
Description
Technical specifications
Download
Logistics
Compliance

Film capacitor, B32643B1223J189, EPCOS

Double sided metallized polypropylene film capacitor MMKP

Features

  • Very compact design
  • High pulse strength
  • High current withstand capability
  • Halogen free

Applications

  • Electronic ballasts (resonant circuits)
  • LLC typology in resonant circuits
  • High frequency applications with high current stress
  • Switched-mode power supply
Technical specifications
Width 6 mm
Number of pins 2
Tolerance ±5 %
Capacity 22 nF
Rated voltage (DC) 1.6 kV
Grid 22.5 mm
Rated voltage (AC) 500 V
max. operating temperature 125 °C
min. operating temperature -55 °C
Design radial
Height 15 mm
Length 26.5 mm
Dielectric material PP
Articles of same specification 0
Logistics
Original Packaging Reel with 700 pieces
Customs tariff number 85321000
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
