B32621A6223K000 | TDK (EPCOS)

MKP film capacitor, 22 nF, ±10 %, 630 V (DC), PP, 10 mm, B32621A6223K000

Order No.: 45D3130
EAN: 4099879832290
MPN:
B32621A6223K000
B32621A6223K
TDK (EPCOS)
B32621A6223K000 TDK (EPCOS) Film Capacitors

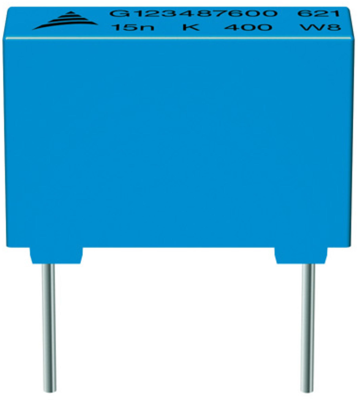

Image may differ
Print
Key Specification:
Capacity 22 nF
Rated voltage (DC) 630 V
Rated voltage (AC) 400 V
Tolerance ±10 %
Dielectric material PP
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,380.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.3451 €
Description
Technical specifications
Download
Logistics
Compliance

Film capacitor, B32621A6223K000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • Very high pulse strength
  • Very good self-healing properties
  • Smallest possible dimensions
  • High contact reliability
  • RoHS-compatible

Applications

  • Compact fluorescent lamps (CFL)
  • SMPS
Technical specifications
Rated voltage (DC) 630 V
Dielectric material PP
Capacity 22 nF
Grid 10 mm
Width 6 mm
Height 12 mm
Length 13 mm
Rated voltage (AC) 400 V
Design radial
min. operating temperature -55 °C
Tolerance ±10 %
max. operating temperature 105 °C
Number of pins 2
Articles of same specification 0
Logistics
Country of origin BR
Customs tariff number 85321000
Original Packaging Bulk with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
