B32621A6223J000 | TDK (EPCOS)
MKP film capacitor, 22 nF, ±5 %, 630 V (DC), PP, 10 mm, B32621A6223J000
Unit Price (€ / pc.)
0.7497 € *
Available: 681 pcs.
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7497 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale

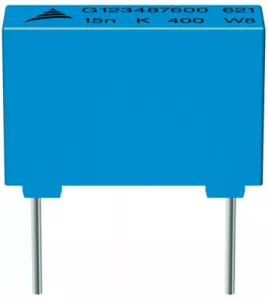

Film capacitor (MKP) for AC applications, type TDK/Epcos B32620A.
Self-sealing layer capacitor with compact dimensions, high pulse strength and contact reliability, for pulse and AC applications
Rated voltage 630 VDC/400 VAC, 10 mm grid, type B32621A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6 mm | |
| Number of pins | 2 | |
| Tolerance | ±5 % | |
| Capacity | 22 nF | |
| Rated voltage (DC) | 630 V | |
| Grid | 10 mm | |
| Rated voltage (AC) | 400 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Design | radial | |
| Height | 12 mm | |
| Length | 13 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Country of origin | BR |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
