B32620A4333J003 | TDK (EPCOS)
MKP film capacitor, 33 nF, ±5 %, 400 V (DC), PP, 7.5 mm, B32620A4333J003
Order No.: 45D2869
EAN: 4099879829924
MPN:
B32620A4333J003
B32620A4333J3
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 28 Weeks

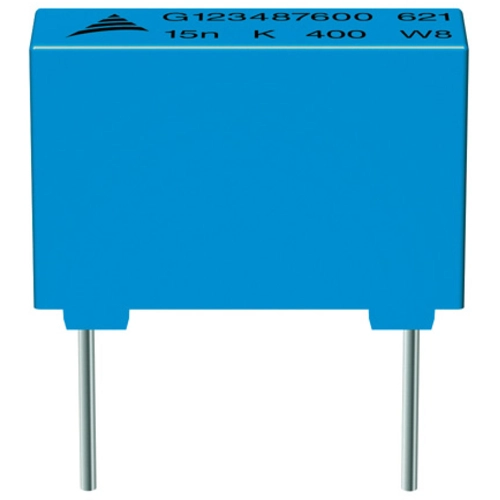

Film capacitor, B32620A4333J003, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- Very high pulse strength
- Very good self-healing properties
- Smallest possible dimensions
- High contact reliability
- RoHS-compatible
Applications
- Compact fluorescent lamps (CFL)
- SMPS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 6 mm | |
| Rated voltage (AC) | 200 V | |
| Rated voltage (DC) | 400 V | |
| Number of pins | 2 | |
| Length | 10.3 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Height | 12 mm | |
| Capacity | 33 nF | |
| Tolerance | ±5 % | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 750 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
