B32620A4223J000 | TDK (EPCOS)

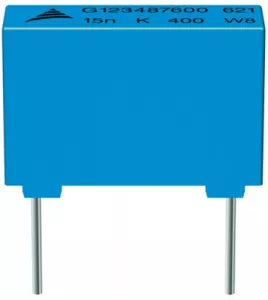

MKP film capacitor, 22 nF, ±5 %, 400 V (DC), PP, 7.5 mm, B32620A4223J000
Unit Price (€ / pc.)
0.5712 € *
Available: 3,803 pcs.
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5712 €
50 pcs.
0.4403 €
250 pcs.
0.3927 €
1000 pcs.
0.3451 €
2000 pcs.
0.3035 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor (MKP) for AC applications, type TDK/Epcos B32620A.
Self-sealing layer capacitor with compact dimensions, high pulse strength and contact reliability, for pulse and AC applications
Rated voltage 400 VDC/200 VAC, 7.5 mm grid, type B32620A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Rated voltage (DC) | 400 V | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 200 V | |
| Tolerance | ±5 % | |
| Length | 10 mm | |
| Capacity | 22 nF | |
| Dielectric material | PP | |
| Height | 10.5 mm | |
| Width | 5 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
