B32564J1336K000 | TDK (EPCOS)

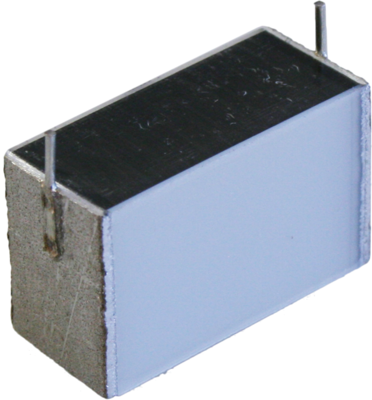

MKT film capacitor, 33 µF, ±10 %, 100 V (DC), PET, 27.5 mm, B32564J1336K000
Not suitable for new designs
Unit Price (€ / pc.)
7.9373 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor, B32564J1336K000, EPCOS
Metallized polyester film capacitor (MKT)
Features
- Special dimensions
- High pulse strength
- Small dimensions
- RoHS-compatible
Applications
- SMPS, converter
- Electronic ballasts
- Compact fluorescent lamps (CFL)
- Ignition
Technical specifications
| Filter | Property | Value |
|---|---|---|

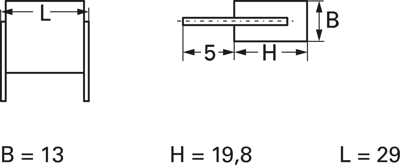

| Length | 29 mm | |
| max. operating temperature | 125 °C | |
| Height | 19.8 mm | |
| Number of pins | 2 | |
| Capacity | 33 µF | |
| Rated voltage (DC) | 100 V | |
| Dielectric material | PET | |
| Tolerance | ±10 % | |
| min. operating temperature | -55 °C | |
| Rated voltage (AC) | 63 V | |
| Width | 13 mm | |
| Grid | 27.5 mm | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 360 pieces |
| Country of origin | CN |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
