B32560J6102K000 | TDK (EPCOS)
MKT film capacitor, 1 nF, ±10 %, 400 V (DC), PET, 7.5 mm, B32560J6102K000
Not suitable for new designs
Unit Price (€ / pc.)
0.3451 € *
Available: 2,802 pcs.
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3451 €
10 pcs.
0.2166 €
50 pcs.
0.1523 €
250 pcs.
0.1285 €
1000 pcs.
0.1095 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, B32560J6102K000, EPCOS
Metallized polyester film capacitor (MKT)
Features
- Special dimensions
- High pulse strength
- Small dimensions
- RoHS-compatible
Applications
- SMPS, converter
- Electronic ballasts
- Compact fluorescent lamps (CFL)
- Ignition
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| Rated voltage (DC) | 400 V | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 200 V | |
| Tolerance | ±10 % | |

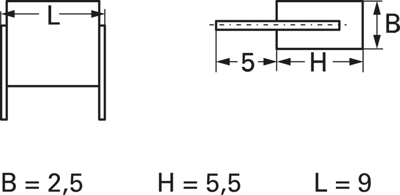

| Length | 9 mm | |
| Capacity | 1 nF | |
| Dielectric material | PET | |
| Height | 5.5 mm | |
| Width | 2.5 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Original Packaging | Bulk with 2,300 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
