B32560J3683K000 | TDK (EPCOS)
MKT film capacitor, 68 nF, ±10 %, 250 V (DC), PET, 7.5 mm, B32560J3683K000
Not suitable for new designs
Unit Price (€ / pc.)
0.3689 € *
Available: 4,170 pcs.
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3689 €
100 pcs.
0.2440 €
500 pcs.
0.1845 €
2000 pcs.
0.1488 €
4000 pcs.
0.1309 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, B32560J3683K000, EPCOS
Metallized polyester film capacitor (MKT)
Features
- Special dimensions
- High pulse strength
- Small dimensions
- RoHS-compatible
Applications
- SMPS, converter
- Electronic ballasts
- Compact fluorescent lamps (CFL)
- Ignition
Technical specifications

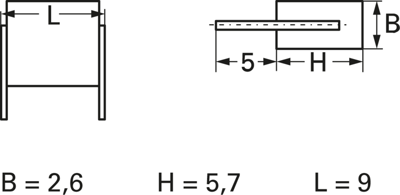

| Filter | Property | Value |
|---|---|---|
| Width | 2.6 mm | |
| Rated voltage (AC) | 160 V | |
| Rated voltage (DC) | 250 V | |
| Number of pins | 2 | |
| Length | 9 mm | |
| Design | radial | |
| Dielectric material | PET | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Height | 5.7 mm | |
| Capacity | 68 nF | |
| Tolerance | ±10 % | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 1,700 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
