B32560J1224K000 | TDK (EPCOS)
MKT film capacitor, 220 nF, ±10 %, 100 V (DC), PET, 7.5 mm, B32560J1224K000
Not suitable for new designs
Unit Price (€ / pc.)
0.4879 € *
Available: 3,172 pcs.
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.3070 €
50 pcs.
0.2225 €
250 pcs.
0.1856 €
1000 pcs.
0.1583 €
*incl. VAT plus shipping costs
Subject to prior sale
Film capacitor, B32560J1224K000, EPCOS
Metallized polyester film capacitor (MKT)
Features
- Special dimensions
- High pulse strength
- Small dimensions
- RoHS-compatible
Applications
- SMPS, converter
- Electronic ballasts
- Compact fluorescent lamps (CFL)
- Ignition
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Rated voltage (AC) | 63 V | |
| Capacity | 220 nF | |
| max. operating temperature | 125 °C | |

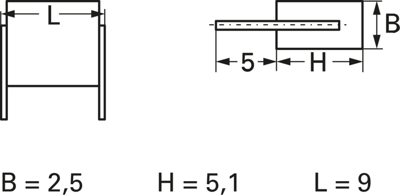

| Length | 9 mm | |
| min. operating temperature | -55 °C | |
| Height | 5.1 mm | |
| Width | 2.5 mm | |
| Grid | 7.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 1,900 pieces |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
