B32560J1104K000 | TDK (EPCOS)
MKT film capacitor, 100 nF, ±10 %, 100 V (DC), PET, 7.5 mm, B32560J1104K000
Not suitable for new designs
Unit Price (€ / pc.)
   0.2606 €  *
   Available: 7,800 pcs.
 Total Price:
  5.21 € *
  Price list
 Quantity
 Price per unit*
 20 pcs.
 0.2606 €
 100 pcs.
 0.1940 €
 500 pcs.
 0.1535 €
 2000 pcs.
 0.1273 €
 4000 pcs.
 0.1119 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Film capacitor, B32560J1104K000, EPCOS
Metallized polyester film capacitor (MKT)
Features
- Special dimensions
- High pulse strength
- Small dimensions
- RoHS-compatible
Applications
- SMPS, converter
- Electronic ballasts
- Compact fluorescent lamps (CFL)
- Ignition
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Rated voltage (AC) | 63 V | |
| Capacity | 100 nF | |
| max. operating temperature | 125 °C | |

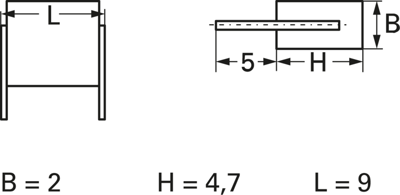

| Length | 9 mm | |
| min. operating temperature | -55 °C | |
| Height | 4.7 mm | |
| Width | 2 mm | |
| Grid | 7.5 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±10 % |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 2,100 pieces |
| Country of origin | CN |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
