B32524Q6225J000 | TDK (EPCOS)

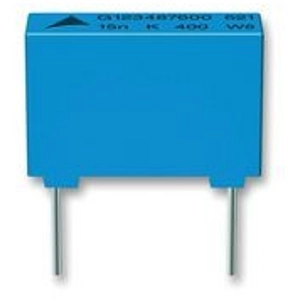

MKT film capacitor, 2.2 µF, ±5 %, 400 V (DC), PET, 27.5 mm, B32524Q6225J000
Order No.: 17D0139
EAN: 4099879812667
MPN:
B32524Q6225J000
B32524Q6225J
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 6 Weeks
Film capacitor, B32524Q6225J000, EPCOS
Metallized polyester film capacitor (MKT)
Features
- High pulse strength
- High contact reliability
- RoHS-compatible
- Halogen-free
Applications
- Blocking
- Coupling, decoupling
- Bypassing
- RFI for automotive
Technical specifications
| Rated voltage (DC) | 400 V | |
| Dielectric material | PET | |
| Capacity | 2.2 µF | |
| Grid | 27.5 mm | |
| Width | 12.5 mm | |
| Height | 21.5 mm | |
| Length | 31.5 mm | |
| Rated voltage (AC) | 200 V | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 125 °C | |
| Number of pins | 2 |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 280 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
