B32354S3306K010 | TDK (EPCOS)

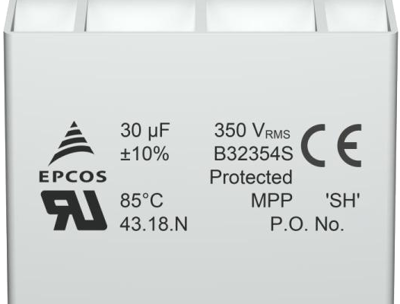

MKP film capacitor, 30 µF, ±10 %, 500 V (DC), PP, 52.5 mm, B32354S3306K010
Order No.: 53D4540
EAN: 4099879858931
MPN:
B32354S3306K010
B32354S3306K 10
Unit Price (€ / pc.)
9.5795 € *
Standard delivery time from the manufacturer is: 6 Weeks
AC Capacitor, B32354S3306K010, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- Optimized AC voltage performance
- High ripple current/frequency handling capability
- Highest safety level 10 000 AFC to UL 810
- For PCB mounting
Applications
- Output AC filtering for power converters, UPS, motor drives
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 500 V | |
| Dielectric material | PP | |
| Capacity | 30 µF | |
| Grid | 52.5 mm | |
| Width | 45 mm | |
| Height | 50 mm | |
| Length | 57.5 mm | |
| Rated voltage (AC) | 350 V | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 85 °C | |
| Number of pins | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 21 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
