B32344E4252A080 | TDK (EPCOS)
MKP film capacitor, 115 µF, -5/+10 %, 480 V (AC), PP, B32344E4252A080
Order No.: 45D0647
EAN: 4099879824233
MPN:
B32344E4252A080
B32344E4252A80
Unit Price (€ / pc.)
121.0706 € *
Standard delivery time from the manufacturer is: 9 Weeks

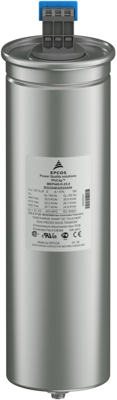

PhiCap capacitor, B32344E4252A080, EPCOS
Film capacitor - Power factor correction
Features
- Three-phase, delta connected
- Self-healing technology
- Naturally air cooled (or forced air cooling)
- Indoor mounting
Applications
- For Power Factor Correction
Technical specifications
| Dielectric material | PP | |
| Capacity | 115 µF | |
| Height | 348 mm | |
| Rated voltage (AC) | 480 V | |
| Design | can | |
| min. operating temperature | -40 °C | |
| Tolerance | -5/+10 % | |
| max. operating temperature | 85 °C | |
| Number of pins | 3 |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Carton with 1 piece |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
