B32344E4162A780 | TDK (EPCOS)
MKP film capacitor, 77 µF, -5/+10 %, 480 V (AC), PP, B32344E4162A780
Order No.: 45D0637
EAN: 4099879824134
MPN:
B32344E4162A780
Unit Price (€ / pc.)
96.1282 € *
Standard delivery time from the manufacturer is: 22 Weeks

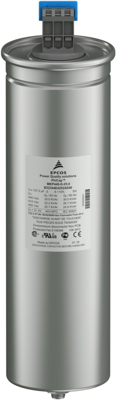

PhiCap capacitor, B32344E4162A780, EPCOS
Film capacitor - Power factor correction
Features
- Three-phase, delta connected
- Self-healing technology
- Naturally air cooled (or forced air cooling)
- Indoor mounting
Applications
- For Power Factor Correction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Rated voltage (AC) | 480 V | |
| Tolerance | -5/+10 % | |
| Capacity | 77 µF | |
| Dielectric material | PP | |
| Height | 273 mm | |
| min. operating temperature | -40 °C | |
| Design | can |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Carton with 1 piece |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
