B32343C4012A000 | TDK (EPCOS)

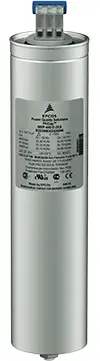

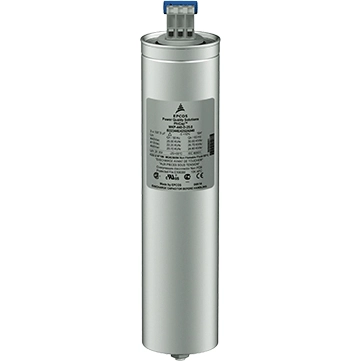

MKP film capacitor, 7 µF, -5/+10 %, 400 V (AC), PP, B32343C4012A000
Order No.: 45D0581
EAN: 4099879823649
MPN:
B32343C4012A000
B32343C4012A
Unit Price (€ / pc.)
19.1233 € *
Standard delivery time from the manufacturer is: 19 Weeks
PhiCap capacitor, B32343C4012A000, EPCOS
Film capacitor - Power factor correction
Features
- Single phase, provided with discharge resistors
- Dual safety system: overpressure disconnector, self-healing technology
- Naturally air cooled (or forced air cooling)
- Indoor mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | -5/+10 % | |
| Capacity | 7 µF | |
| Rated voltage (AC) | 400 V | |
| max. operating temperature | 55 °C | |
| min. operating temperature | -25 °C | |
| Design | can | |
| Height | 114 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 12 pieces |
| Country of origin | BR |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
