B32340C4021A580 | TDK (EPCOS)

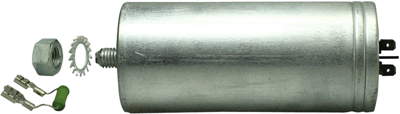

MKP film capacitor, 29 µF, -5/+10 %, 480 V (AC), PP, B32340C4021A580
Order No.: 45D0561
EAN: 4099879823465
MPN:
B32340C4021A580
Unit Price (€ / pc.)
23.8595 € *
Standard delivery time from the manufacturer is: 22 Weeks
PhiCap capacitor, B32340C4021A580, EPCOS
Film capacitor - Power factor correction
Features
- Single phase, provided with discharge resistors
- Dual safety system: overpressure disconnector, self-healing technology
- Naturally air cooled (or forced air cooling)
- Indoor mounting
Applications
- For Power Factor Correction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 55 °C | |
| Rated voltage (AC) | 480 V | |
| Tolerance | -5/+10 % | |
| Capacity | 29 µF | |
| Dielectric material | PP | |
| Height | 105 mm | |
| min. operating temperature | -25 °C | |
| Design | can |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Original Packaging | Carton with 12 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
