B32340C4012A700 | TDK (EPCOS)
MKP film capacitor, 33 µF, -5/+10 %, 400 V (AC), PP, B32340C4012A700
Unit Price (€ / pc.)
24.9543 € *
Available: 14 pcs.
Total Price:
24.95 € *
Price list
Quantity
Price per unit*
1 pcs.
24.9543 €
12 pcs.
21.9555 €
60 pcs.
20.4680 €
156 pcs.
19.6707 €
504 pcs.
18.7187 €
*incl. VAT plus shipping costs
Subject to prior sale
Power capacitor PhiCap, type TDK/Epcos B32340.
For improved reactive power, single-phase, self-sealing
Technical specifications
| Filter | Property | Value |
|---|---|---|

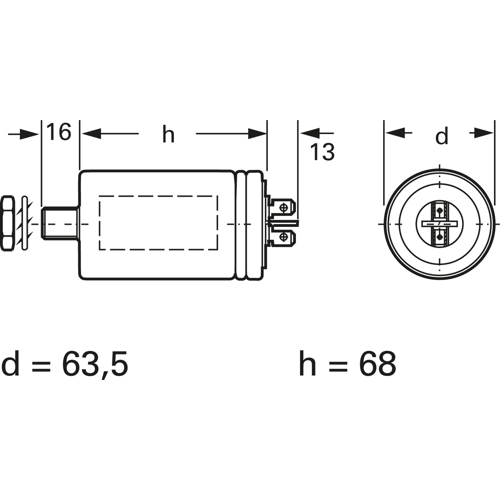

| Height | 68 mm | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 55 °C | |
| Rated voltage (AC) | 400 V | |
| Tolerance | -5/+10 % | |
| Capacity | 33 µF | |
| Design | can | |
| Number of pins | 2 | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Country of origin | IN |
| Original Packaging | Carton with 12 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
