B32340C4002A810 | TDK (EPCOS)
MKP film capacitor, 15 µF, -5/+10 %, 415 V (AC), PP, B32340C4002A810
Order No.: 45D0556
EAN: 4099879823410
MPN:
B32340C4002A810
Unit Price (€ / pc.)
18.7425 € *
Standard delivery time from the manufacturer is: 9 Weeks

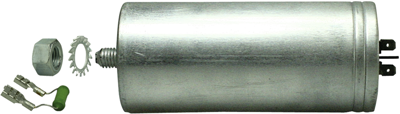

PhiCap capacitor, B32340C4002A810, EPCOS
Film capacitor - Power factor correction
Features
- Single phase, provided with discharge resistors
- Dual safety system: overpressure disconnector, self-healing technology
- Naturally air cooled (or forced air cooling)
- Indoor mounting
Applications
- For Power Factor Correction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PP | |
| Capacity | 15 µF | |
| Height | 68 mm | |
| Rated voltage (AC) | 415 V | |
| Design | can | |
| min. operating temperature | -25 °C | |
| Tolerance | -5/+10 % | |
| max. operating temperature | 55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Original Packaging | Carton with 12 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
