B32036A4474M026 | TDK (EPCOS)
MKP suppression capacitor, 470 nF, ±20 %, 1 kV (DC), PP, 37.5 mm, B32036A4474M026
Order No.: 53D4872
EAN: 4099879859426
MPN:
B32036A4474M026
Unit Price (€ / pc.)
3.2368 € *
Standard delivery time from the manufacturer is: 6 Weeks

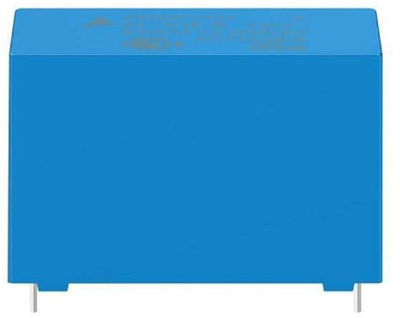

Film capacitor, B32036A4474M026, EPCOS
EMI suppression capacitor (MKP)
Features
- Small dimensions
- Good self-healing properties
- High voltage capability
- RoHS-compatible
Applications
- Y2 class for interference suppression
- Line to ground
- Severe Ambient conditions
- Automotive
Technical specifications
| Capacity | 470 nF | |
| Rated voltage (DC) | 1 kV | |
| Rated voltage (AC) | 350 V | |
| Tolerance | ±20 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 37.5 mm | |
| Interference suppression class | Y2 | |
| Number of pins | 2 | |
| Length | 42 mm | |
| Width | 16 mm | |
| Height | 28.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 68 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
