B67345B0002X087 | TDK (EPCOS)

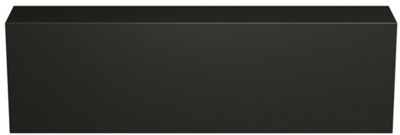

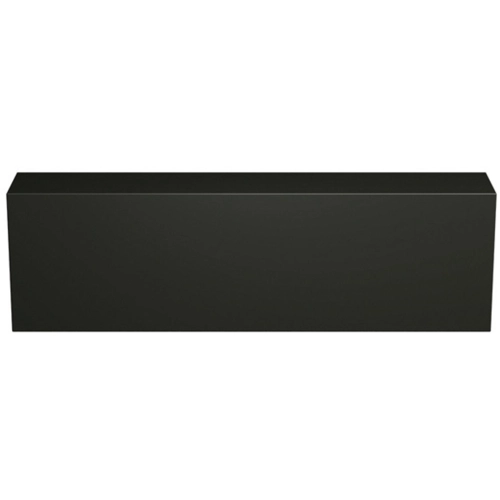

I core, N87, 7900 nH, -20/+30 %, (L x W x H) 93 x 30 x 76 mm, B67345B0002X087
Unit Price (€ / pc.)
17.3621 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
17.36 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3621 €
8 pcs.
15.6961 €
16 pcs.
15.2677 €
64 pcs.
14.4347 €
152 pcs.
13.9468 €
*incl. VAT plus shipping costs
Subject to prior sale
I cores I93/28/30, type B67345.
Effective magnetic field parameters: path length/cross-sectional area/effective magnetic volume: 258 mm/840 mm²/216000 mm³. AL reference value: 7400 nH. Note: Magnetic field parameters and AL values apply to core kits consisting of one U core and one I core without air gap. Supplied as per single item.
Technical attributes (type, AL value, material): B67345B2X87, 7900 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 30 mm | |
| Height | 76 mm | |
| Tolerance | -20/+30 % | |
| Core shape | I | |
| Material | N87 | |
| AL value | 7900 nH | |
| Air gap | no air gap | |
| Length | 93 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 8 pieces |
| Country of origin | CZ |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
