B66423U0160K187 | TDK (EPCOS)

EFD core, N87, 160 nH, ±10 %, (L x W x H) 30 x 15 x 9.1 mm, B66423U0160K187

Order No.: 83D5571
EAN: 4099889059304
MPN:
B66423U0160K187
B66423U160K187
Series: B664x

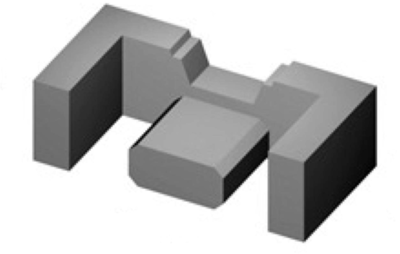

B66423U0160K187 TDK (EPCOS) Ferrite cores Image 1

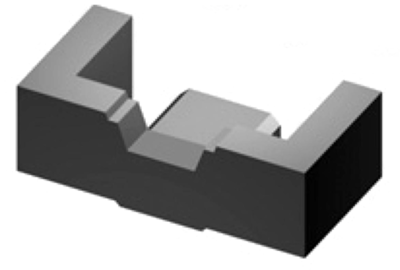

B66423U0160K187 TDK (EPCOS) Ferrite cores Image 2
B66423U0160K187 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
1.7136 € *
Available: 385 pcs.
Total Price:
17.14 € *
Price list
Quantity
Price per unit*
10 pcs.
1.7136 €
50 pcs.
1.5113 €
300 pcs.
1.2614 €
1200 pcs.
1.0948 €
2400 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores EFD30, type TDK/Epcos B66423.

With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer or signal transformer: L 34.4, W 32.5, H 12.5, g 0.71 mm. Single item supply; two items required per core kit.

Technical attributes (type, AL value, material type, design): B66423U160K187, 160 nH, N87, gapped

Technical specifications
Height 9.1 mm
Length 30 mm
Material N87
Core shape EFD
Tolerance ±10 %
Air gap 0.71 mm
Width 15 mm
AL value 160 nH
Logistics
Customs tariff number 85049011
Country of origin CZ
Original Packaging Tray with 300 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
