B66421U0250K187 | TDK (EPCOS)

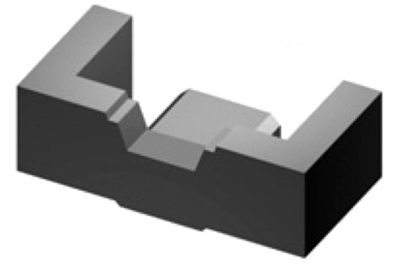

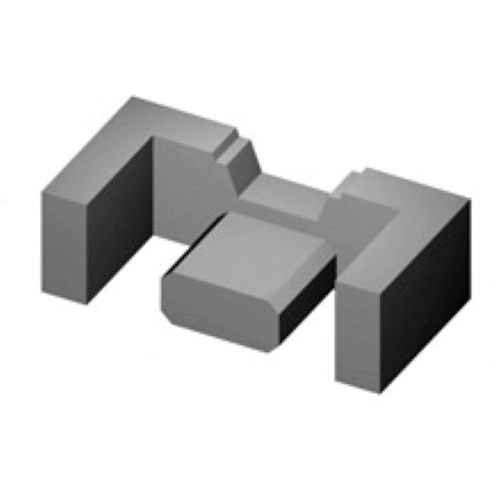

EFD core, N87, 250 nH, ±10 %, (L x W x H) 25 x 9.1 x 12.5 mm, B66421U0250K187
Unit Price (€ / pc.)
2.7965 € *
Available: 3,066 pcs.
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7965 €
10 pcs.
1.7493 €
50 pcs.
1.5351 €
650 pcs.
1.2257 €
1300 pcs.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale
E cores EFD25, type TDK/Epcos B66421.
With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer/signal transformer: L 29.3, W 27.3, H 12.5, g 0.3 mm. Single item supply; two items required per core kit.
Technical attributes (type, AL value, material type, design): B66421U250K187, 250 nH, N87, gapped
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Air gap | 0.3 mm | |
| AL value | 250 nH | |
| Tolerance | ±10 % | |
| Width | 9.1 mm | |
| Height | 12.5 mm | |
| Material | N87 | |
| Core shape | EFD | |
| Length | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Tray with 650 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
