B66421G0000X197 | TDK (EPCOS)
EFD core, N97, 2100 nH, -20/+30 %, (L x W x H) 25 x 9.1 x 12.5 mm, B66421G0000X197
Order No.: 83D5553
EAN: 4099889059281
MPN:
B66421G0000X197
B66421GX197
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 10 Weeks

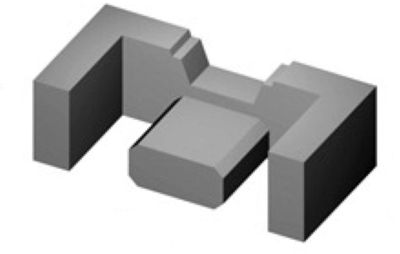

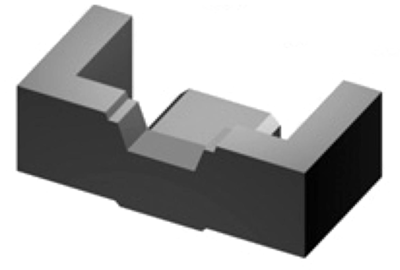

E cores EFD25, type TDK/Epcos B66421.
With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer/signal transformer: L 29.3, W 27.3, H 12.5, g 0.3 mm. Single item supply; two items required per core kit.
Technical attributes (type, AL value, material type, design): B66421GX197, 2100 nH, N97, without air gap
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 2100 nH | |
| Height | 12.5 mm | |
| Air gap | no air gap | |
| Tolerance | -20/+30 % | |
| Length | 25 mm | |
| Width | 9.1 mm | |
| Material | N97 | |
| Core shape | EFD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 650 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
