B66421G0000X187 | TDK (EPCOS)
EFD core, N87, 2000 nH, -20/+30 %, (L x W x H) 25 x 9.1 x 12.5 mm, B66421G0000X187
Unit Price (€ / pc.)
1.6779 € *
Available: 1,800 pcs.
Total Price:
16.78 € *
Price list
Quantity
Price per unit*
10 pcs.
1.6779 €
50 pcs.
1.4756 €
650 pcs.
1.1781 €
1300 pcs.
1.0948 €
2600 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale

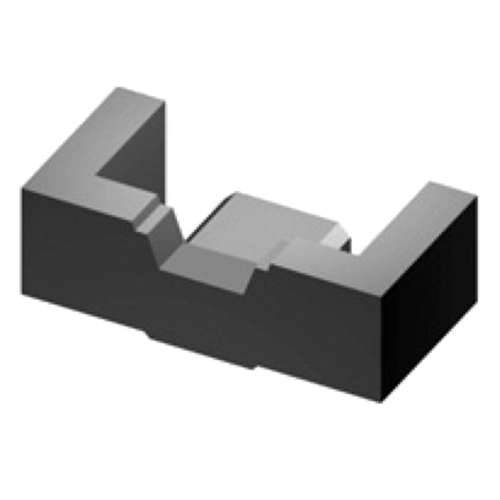

E cores EFD25, type TDK/Epcos B66421.

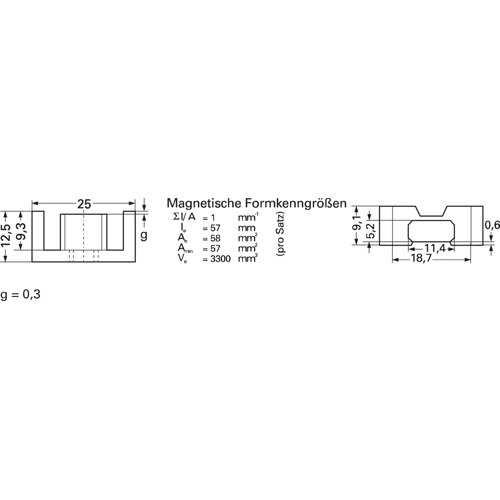

With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer/signal transformer: L 29.3, W 27.3, H 12.5, g 0.3 mm. Single item supply; two items required per core kit.
Technical attributes (type, AL value, material type, design): B66421GX187, 2000 nH, N87, without air gap
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Air gap | no air gap | |
| AL value | 2000 nH | |
| Tolerance | -20/+30 % | |
| Width | 9.1 mm | |
| Height | 12.5 mm | |
| Material | N87 | |
| Core shape | EFD | |
| Length | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Bulk with 650 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
