B66417G0000X187 | TDK (EPCOS)
EFD core, N87, 1200 nH, -20/+30 %, (L x W x H) 20 x 6.65 x 10 mm, B66417G0000X187
Unit Price (€ / pc.)
1.4518 € *
Available: 3,684 pcs.
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
0.9044 €
50 pcs.
0.7854 €
250 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

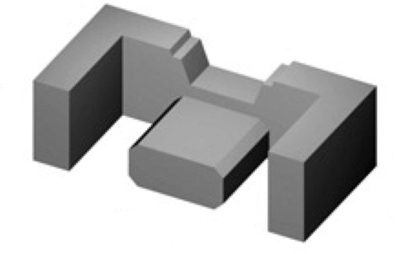

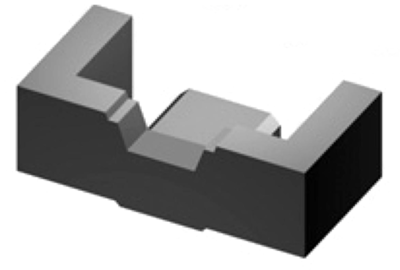

E cores EFD20, type TDK/Epcos B66417.
With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer or signal transformer: L 24.3, W 22, H 10 mm, without air gap. Single item supply; two items required per core kit.
Technical attributes (type, AL value, material): B66417GX187, 1200 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 10 mm | |
| Material | N87 | |
| Tolerance | -20/+30 % | |
| Length | 20 mm | |
| AL value | 1200 nH | |
| Width | 6.65 mm | |
| Core shape | EFD | |
| Air gap | no air gap |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,260 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
