B66417G0000X149 | TDK (EPCOS)
EFD core, N49, 910 nH, -20/+30 %, (L x W x H) 20 x 6.65 x 10 mm, B66417G0000X149
Order No.: 83D5530
EAN: 4099889059236
MPN:
B66417G0000X149
B66417GX149
Unit Price (€ / pc.)
0.6902 € *
Standard delivery time from the manufacturer is: 23 Weeks

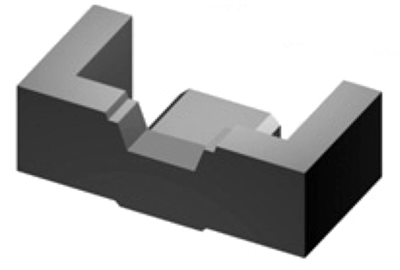

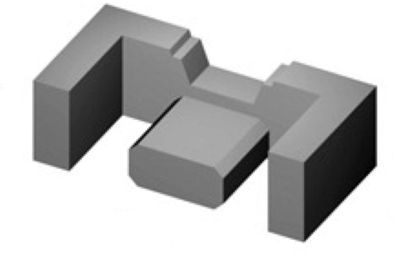

E cores EFD20, type TDK/Epcos B66417.
With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer or signal transformer: L 24.3, W 22, H 10 mm, without air gap. Single item supply; two items required per core kit.
Technical attributes (type, AL value, material): B66417GX149, 910 nH, N49
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 20 mm | |
| AL value | 910 nH | |
| Tolerance | -20/+30 % | |
| Width | 6.65 mm | |
| Core shape | EFD | |
| Height | 10 mm | |
| Material | N49 | |
| Air gap | no air gap |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,250 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
