B66413G0000X187 | TDK (EPCOS)

EFD core, N87, 780 nH, -20/+30 %, (L x W x H) 15 x 4.65 x 7.5 mm, B66413G0000X187

Order No.: 83D5502
EAN: 4099889059229
MPN:
B66413G0000X187
B66413GX187
Series: B664x

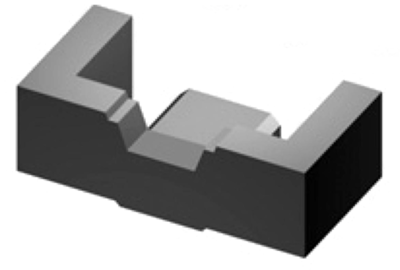

B66413G0000X187 TDK (EPCOS) Ferrite cores Image 1
B66413G0000X187 TDK (EPCOS) Ferrite cores Image 2
B66413G0000X187 TDK (EPCOS) Ferrite cores Image 3
Image may differ
Unit Price (€ / pc.)
0.7973 € *
Available: 5,614 pcs.
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7973 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

E cores EFD15, type TDK/Epcos B66413.

With flattened, lowered center leg for particularly flat transformer types, made of silicon ferrite materials (data is provided in the table at the end of the core section); Basic dimensions of a finished transformer or signal transformer: L 19.3, W 17, H 8.0 mm, without air gap. Single item supply; two items required per core kit.

Technical attributes (type, AL value, material): B66413GX187, 780 nH, N87

Technical specifications
Height 7.5 mm
Length 15 mm
Material N87
Core shape EFD
Tolerance -20/+30 %
Air gap no air gap
Width 4.65 mm
AL value 780 nH
Logistics
Customs tariff number 85049011
Country of origin IN
Original Packaging Bulk with 1,920 pieces
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
