B66395G0000X187 | TDK (EPCOS)
ETD core, N87, 4450 nH, -20/+30 %, (L x W x H) 54.5 x 19.3 x 27.8 mm, B66395G0000X187
Unit Price (€ / pc.)
6.0690 € *
Available: 145 pcs.
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0690 €
10 pcs.
5.3312 €
81 pcs.
4.7600 €
324 pcs.
4.4625 €
1296 pcs.
4.1650 €
*incl. VAT plus shipping costs
Subject to prior sale

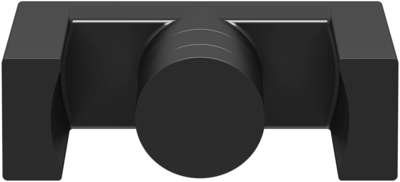

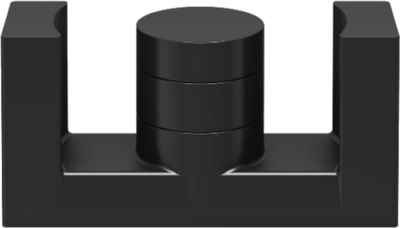

E cores ETD54, type TDK/Epcos B66395.
To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. Without air gap; Basic dimensions of a finished transformer or signal transformer: L 62, W 62, H 47 mm.
Technical attributes (type, AL value, material): B66395GX187, 4450 nH, N87
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AL value | 4450 nH | |
| Core shape | ETD | |
| Height | 27.8 mm | |
| Air gap | no air gap | |
| Material | N87 | |
| Tolerance | -20/+30 % | |
| Width | 19.3 mm | |
| Length | 54.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85049011 |
| Country of origin | IN |
| Original Packaging | Bulk with 81 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
