B66387G1500X127 | TDK (EPCOS)
E core, N27, 526 nH, (L x W x H) 65 x 32.8 x 27.4 mm, B66387G1500X127
Unit Price (€ / pc.)
11.5906 € *
Available: 16 pcs.
Total Price:
11.59 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5906 €
28 pcs.
10.1864 €
56 pcs.
9.8413 €
112 pcs.
9.5081 €
504 pcs.
8.8655 €
*incl. VAT plus shipping costs
Subject to prior sale

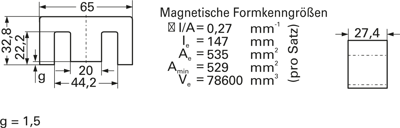

E cores E65/32/27, type TDK/Epcos B66387.
Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66387G1500X127, 1.5 mm, 526 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core shape | E | |
| Air gap | 1.5 mm | |
| Material | N27 | |
| AL value | 526 nH | |
| Length | 65 mm | |
| Width | 32.8 mm | |
| Height | 27.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 28 pieces |
| Customs tariff number | 85049011 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
