B66387G0000X127 | TDK (EPCOS)
E core, N27, 7200 nH, -20/+30 %, (L x W x H) 65 x 27.4 x 32.8 mm, B66387G0000X127
Unit Price (€ / pc.)
9.5557 € *
Available: 569 pcs.
Total Price:
9.56 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5557 €
28 pcs.
8.4014 €
112 pcs.
7.9611 €
252 pcs.
7.6517 €
1008 pcs.
7.2114 €
*incl. VAT plus shipping costs
Subject to prior sale

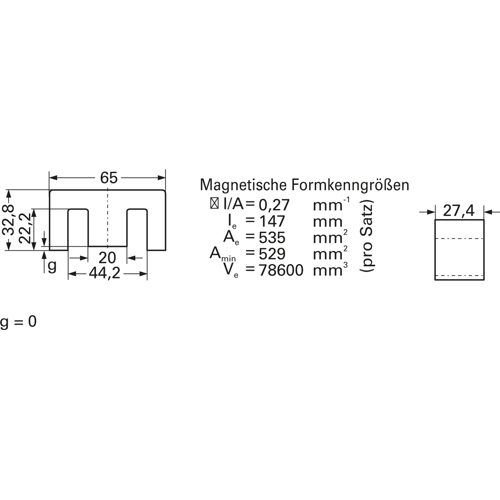

E cores E65/32/27, type TDK/Epcos B66387.
Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66387GX127, 0 mm, 7200 nH, N27
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 32.8 mm | |
| AL value | 7200 nH | |
| Core shape | E | |
| Width | 27.4 mm | |
| Material | N27 | |
| Tolerance | -20/+30 % | |
| Air gap | no air gap | |
| Length | 65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Bulk with 28 pieces |
| Customs tariff number | 85049011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
